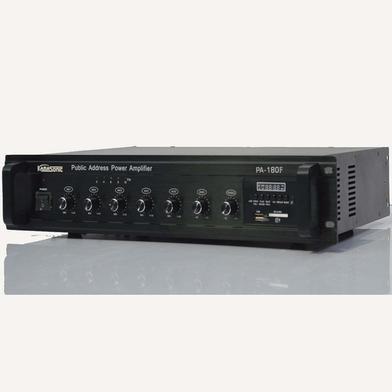

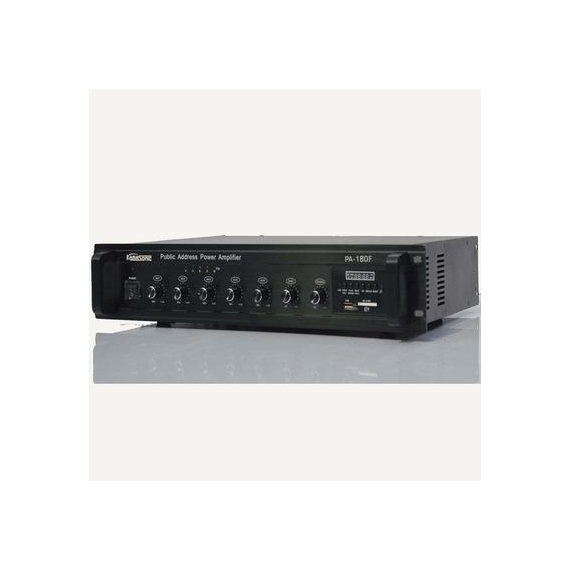

Kamasonic PA-180F Amplifier

Product Details:

• Model: PA-180F

• Brand: Kamasonic

• Output Power: 180 Watts RMS

• Output Impedance: 4Ω – 16Ω

• Output Voltage: 70V / 100V

• Power Supply: AC 220V, 50Hz

• Frequency Response: 60Hz – 20kHz (±2dB)

• Input Sensitivity:

  • Microphone: 5–100mV / 1kΩ

  • Line: 50mV / 47kΩ

• Output Sensitivity: 4–16Ω / 70V / 100V

• Features:

  • Plug & Play U Disk

  • FM Radio

  • Wireless Remote Control

  • Three Microphone Inputs

  • Two Auxiliary Inputs

  • One Auxiliary Output for Link

  • Transformer Isolated Outputs (100V, 70V, 4–16Ω)

  • Five-Element LED Level Meter

  • Muting Function

  • Individual Volume Control

  • Low and High Tone Control

  • Short Circuit Protection & Alarm

  • Individual Distributor for Each Channel

Features:

• Connectivity: USB, FM Radio, Wireless Remote Control

• Inputs: 3 Microphone Inputs, 2 Auxiliary Inputs

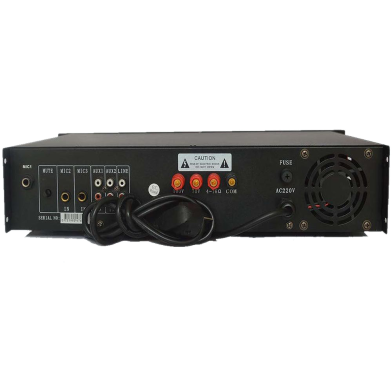

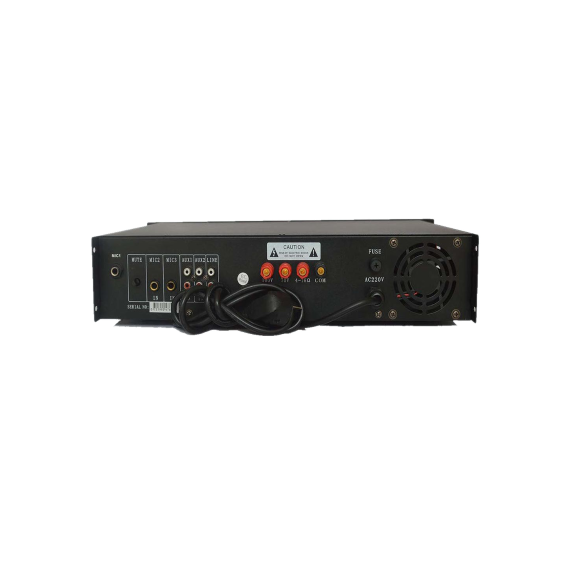

• Outputs: 1 Auxiliary Output, Transformer Isolated Outputs (100V, 70V, 4–16Ω)

• Controls: Individual Volume Control, Low and High Tone Control

• Protection: Short Circuit Protection with Alarm

• Display: Five-Element LED Level Meter

• Additional Functions: Muting Function, Individual Distributor for Each Channel

Best For:

• Public Address Systems

• Educational Institutions

• Religious Gatherings

• Conference Rooms

• Community Centers

How to Use:

1. Power On: Connect the amplifier to a 220V power source and switch it on.

2. Connect Inputs: Plug in microphones or auxiliary devices into the respective input ports.

3. Adjust Settings: Use the volume and tone controls to adjust the sound to your preference.

4. Monitor Levels: Utilize the LED level meter to monitor output levels.

5. Protection: The amplifier includes short circuit protection; ensure connections are secure to prevent triggering the alarm.
